uval<sup>gt</sup> Building

How the uvalgt kit works

Building

What was once a cumbersome procedure has now become a standard undertaking thanks to smart technology. Get reliable U-value measurements with the uvalgt Building measurement kit.

Quick and easy to use: setting up and starting the base station.

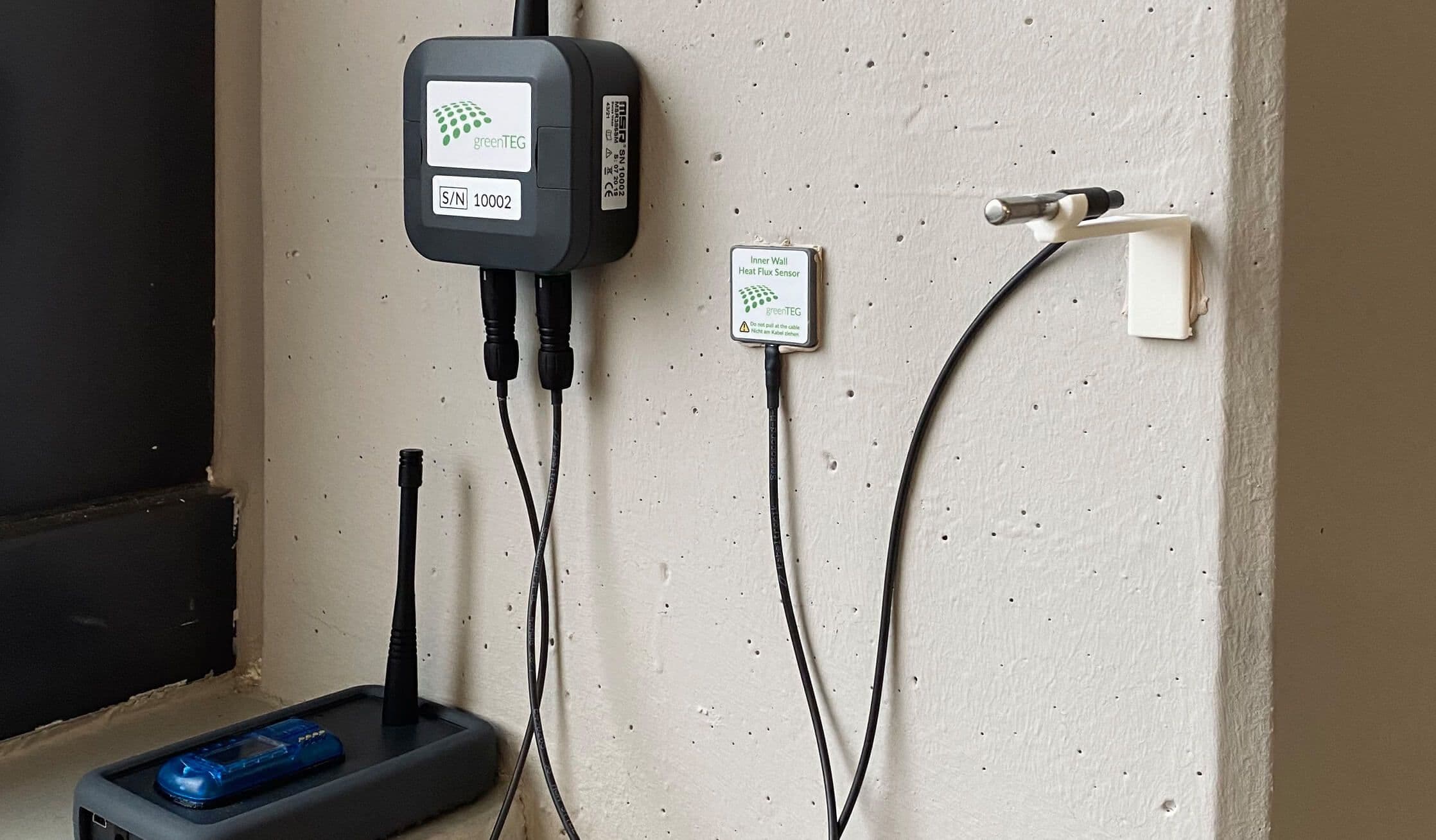

Attach the heat flux sensor and temperature sensors to the internal wall.

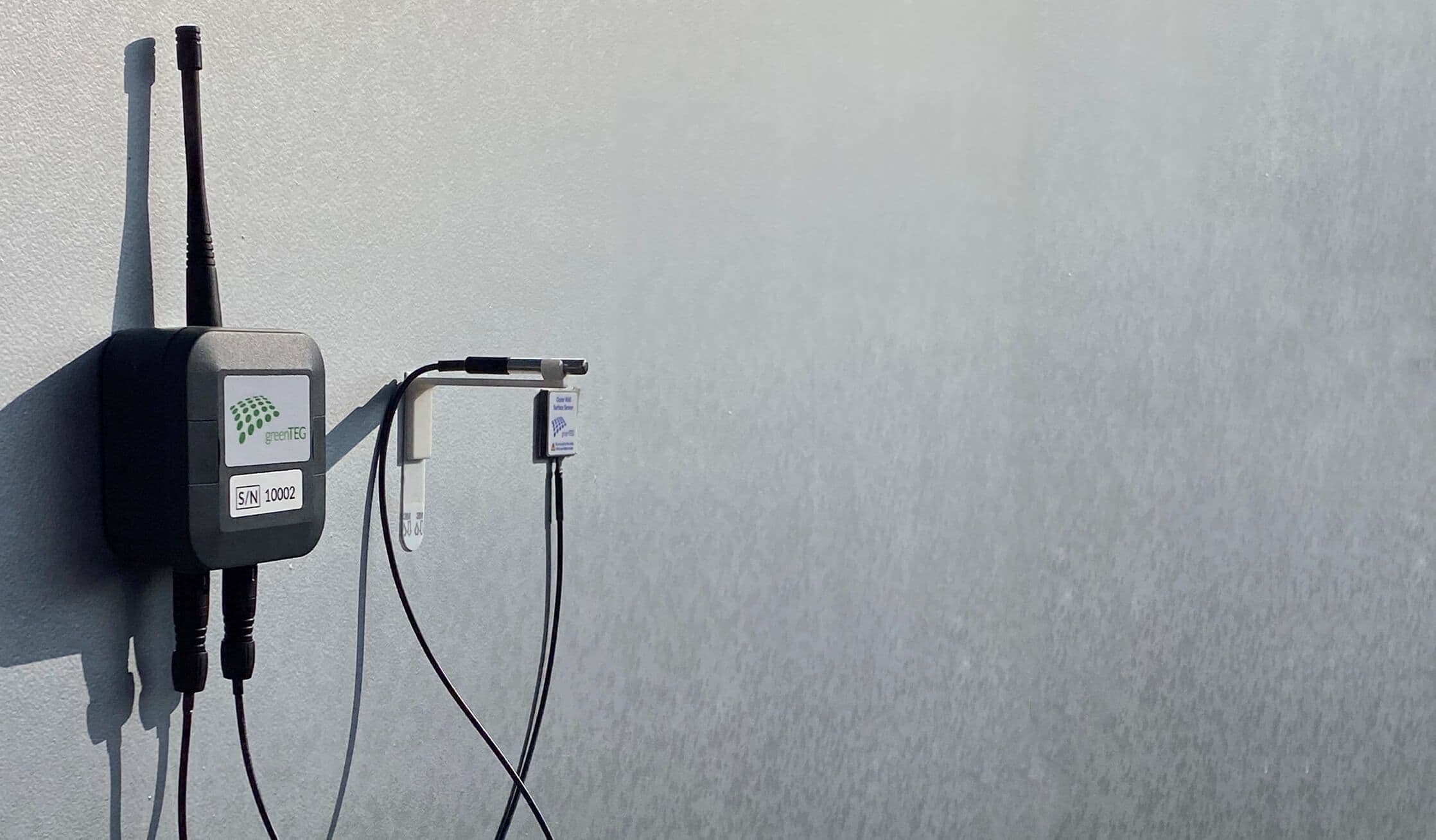

The temperature sensors are attached to the exterior wall.

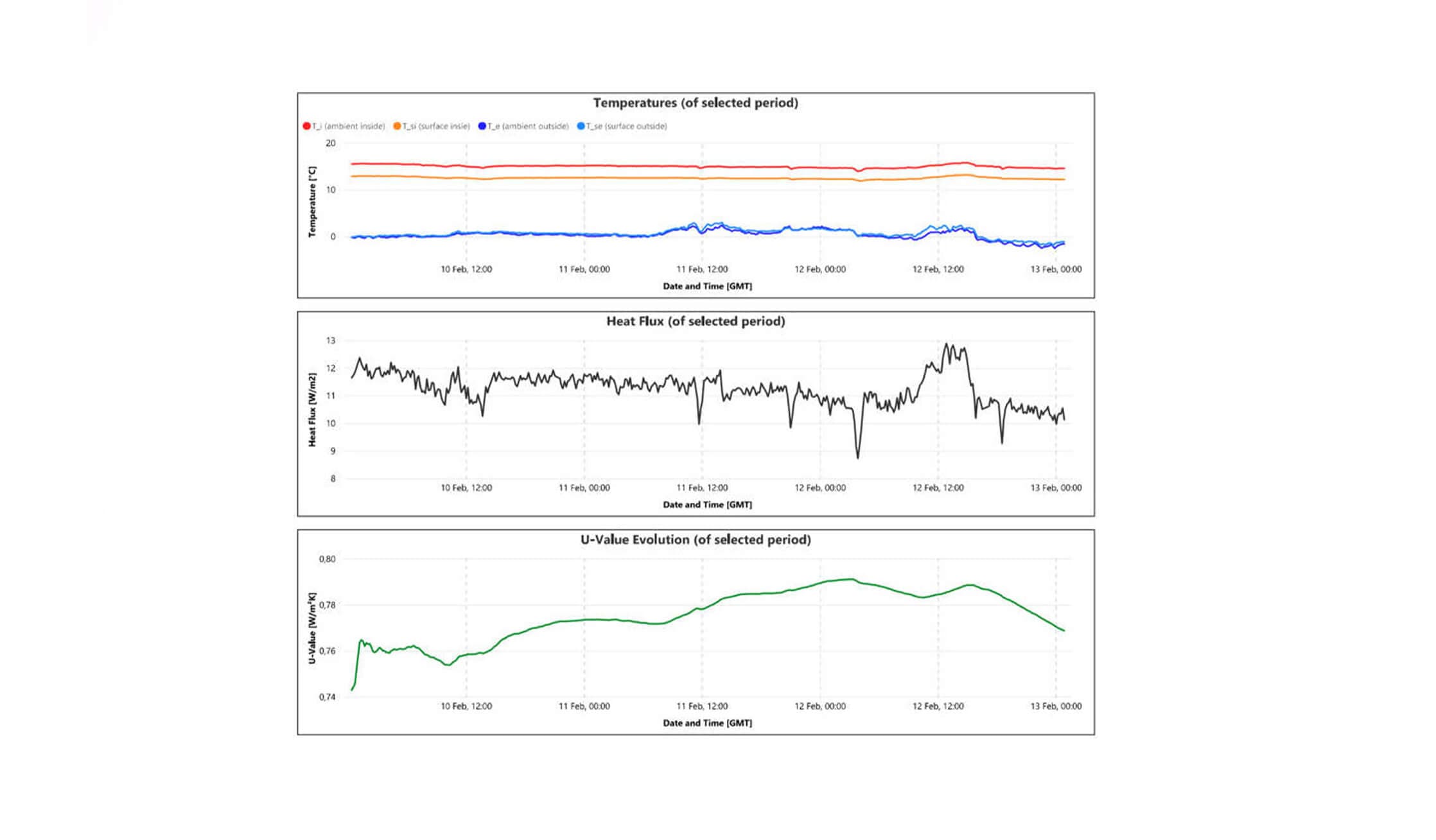

Real-time monitoring and analysis directly on a laptop thanks to the provided software.
Quick and easy to use: setting up and starting the base station.
Attach the heat flux sensor and temperature sensors to the internal wall.
The temperature sensors are attached to the exterior wall.
Real-time monitoring and analysis directly on a laptop thanks to the provided software.
Quick and easy to use: setting up and starting the base station.
Attach the heat flux sensor and temperature sensors to the internal wall.
The temperature sensors are attached to the exterior wall.
Real-time monitoring and analysis directly on a laptop thanks to the provided software.

Background

A variety of measurements must be taken to precisely calculate a building’s U-value: the surface temperature of the interior and exterior walls, the ambient air temperature and the heat flux, measured on the interior facade.

With the uvalgt Building measurement process, the surface and outdoor temperatures are measured on the outer shell by means of temperature sensors. One heat flux sensor and two temperature sensors are applied to the interior wall to measure the surface and ambient air temperatures. A data logger stores all of the information and calculates the U-value using the software supplied.

This compact all-in-one measuring system is the perfect solution for determining a building’s most important energy values, and provides insights into energy consumption, energy efficiency and the quality of the building envelope.

Solution

uvalgt Building sensor technology allows for straightforward and precise measurement of the U-value of building envelopes, structural elements, and materials.

The uvalgt wireless kit data measuring device is used to conduct simultaneous measurements of the U-value and the ambient and surface temperatures (indoors and outdoors) at five sensor points, with the option of cloud-based data transmission, analysis and monitoring in real time.

Benefits

  • Straightforward, standard-conforming measurement of the U-value
  • Real-time measurement directly on a laptop
  • Simple, calibrated plug & play solution
  • Analyses and performance logs via user-friendly software
  • CSV export feature
  • ISO 9869 certified, ASTM C1046 and ASTM C1155 standardized
  • Patented Swiss measurement technology
  • Compact transport case
  • Versatile equipment for a wide variety of applications

Details

uvalgt wireless kit datasheet
uvalgt wireless kit operating instructions
uvalgt wireless kit installation guide

Study: U-value Measurement with the uvalgt Wireless Kit, ETH Zurich Study: U-value Measurement in Old Buildings with the uvalgt Wireless Kit, Hässig Sustech for the Swiss Federal Office of Energy

Video: U-value Measurement with the uvalgt Wireless Kit
